Description

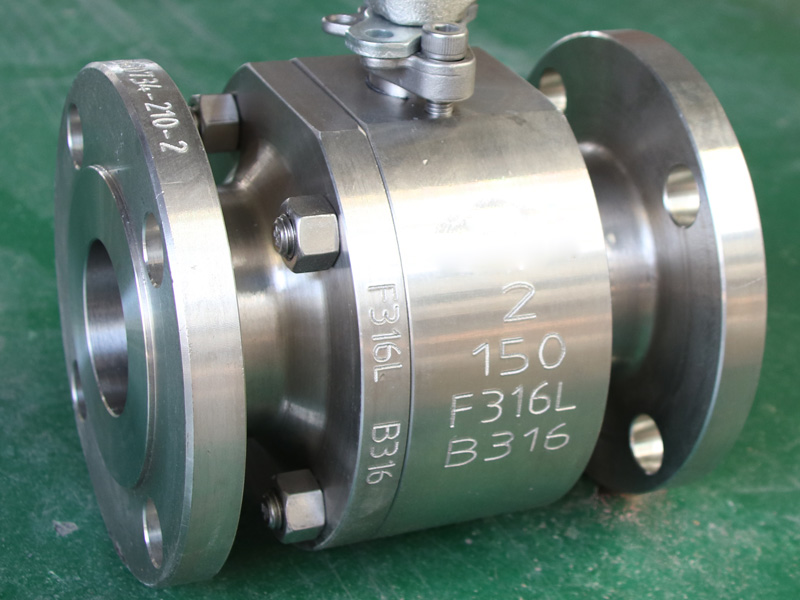

With all advantages of Floating Ball Valves, Med Forged Steel Floating Line are offered in types of Two Piece Split Body & Three Piece Bolted Body. The forging material can ensure sufficient rigidity and strength under maximum rated operation pressure. without inherent flaw of cast. Enough wall thickness of separate body and adaptation of high strength tie bolts are convenient for valve maintenance and sufficient to bear the stress of pipe. The internal parts of valve are carefully designed and selected to ensure reliability under all kinds of work conditions.
Forged Steel Floating Ball Valves Manufactured by Med are available in types of One Piece Uni-body, Two Piece Split Body and Three Piece Bolted Body. Designed and manufactured to the most updated international standards API 6D, ASME B16.34, BS 5351 or equivalents. With standard features of Fire Safe, Anti-static and Blow-out.
» Size Ranges: 1/2” through 10”
» Pressure Ratings: ANSI #150 to 600
» Standards compliance: API 6D, BS 5351, ASME B16.34, DIN 3202 or equivalents
» Materials: Cast Carbon Steel, Stainless Steel, Duplex or Other Specials
» Ends Connections: Flanged R.F, RTJ, Welded or Grooved

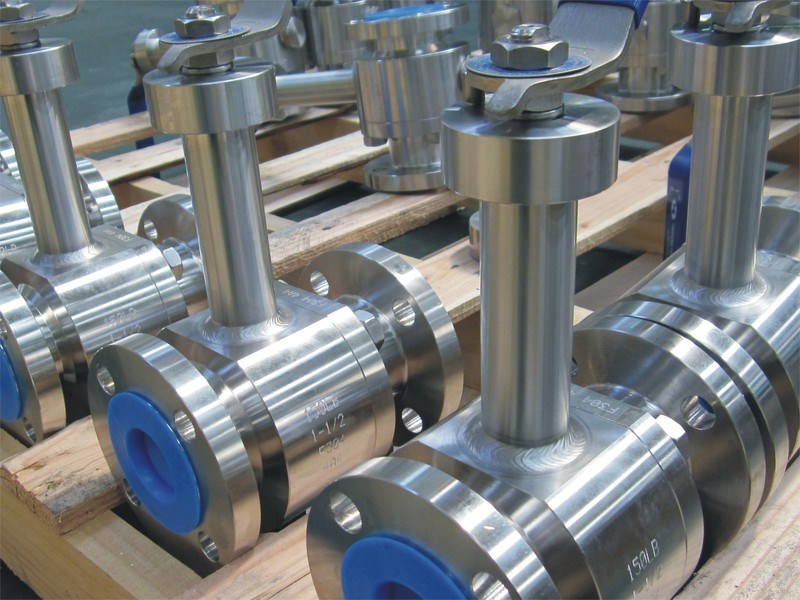

» Optional Locking Device or Stem Extension
» Optional Direct Mounting to ISO 5211
» Full Port or Regular Bore
