Cast Steel Ball Valve, API 6D, 20 Inch, Class 150, RF End

China Stainless Steel Ball Valve Supplier MED Provides Stainless Steel Ball Valve, API 6D Standard, 24IN, Pressure CL600, Raised Face, -46℃~+200℃
OnLine Service
QQ Skype Online PDF Download

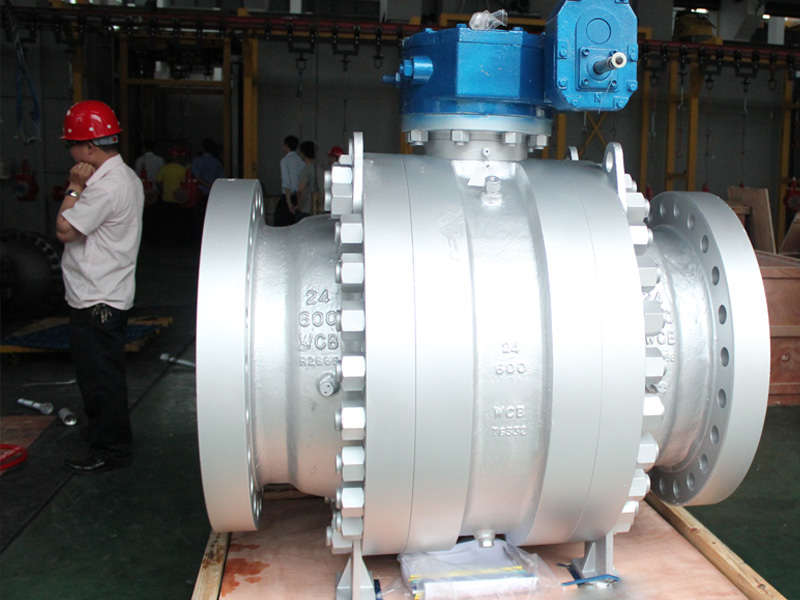

Cast Steel Ball Valve 26 Inch Trunnion Ball Valve, WCB, API 6D, 26 Inch, Class 900, RTJ
Description
Valve Description:
Design Standard: API 6D.
Body Material: WCB.
Nominal Diameter: 24".
Pressure: CL600.
End Connection: RF.
Face to Face: ASME B16.10.
Working Temperature: -29℃~+200℃.
Mode of Operation: Gearbox.
Test and Inspection: API 6D, API598.

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 2"~60" (DN50~DN1500).
End Connection: BW, Flanged.
Pressure Range: 150lbs~2500lbs(PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actuator, Gas Over Oil Actuator.
Working Temperature: -46℃~+200℃.
