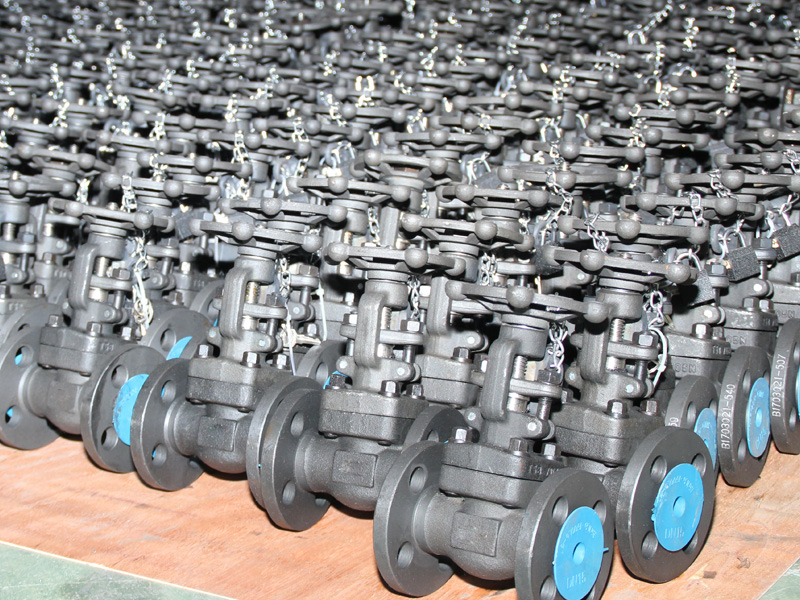

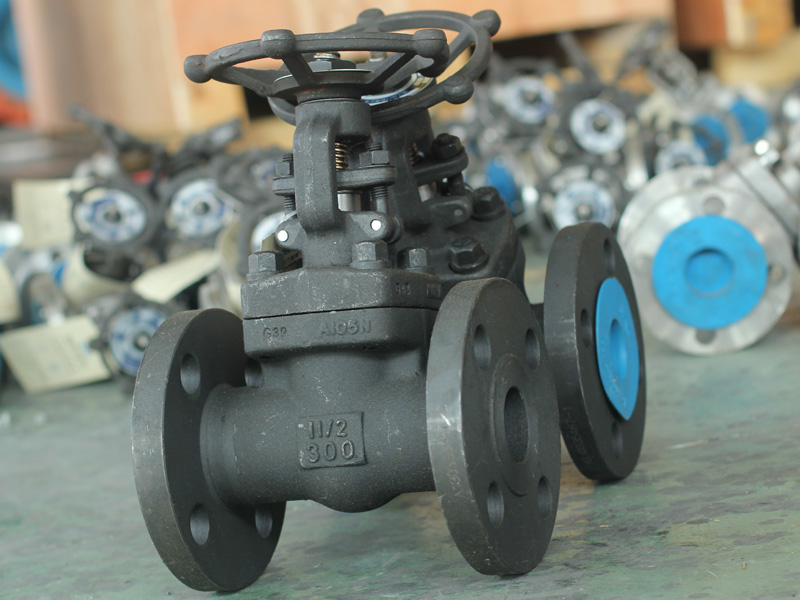

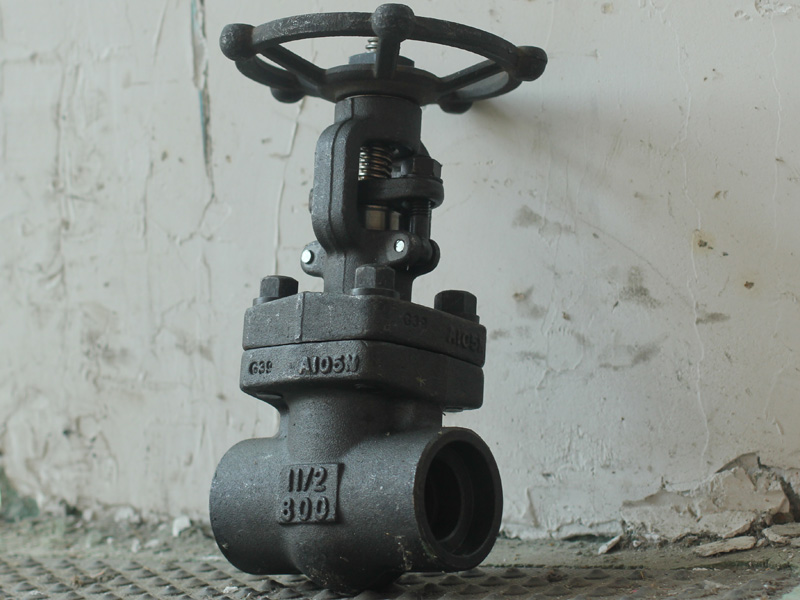

Med Forged Steel Gate Valves are designed and manufactured strictly to International Standards API 602, ASME B16.34, DIN3202 or Equivalent, a compact but extremely sturdy design for high pressure-temperature service, Solid CoCr alloy wedge (optional) ensures low friction and long service life, packing rings are precompressed to 4000 psi to provide a high integrity seal, for welded bonnet valves, the bonnet is threaded in and torqued to an engineered torque value and the body bonnet joint is strength-welded, offering double protection against leakage. (Body/bonnet threads and strength-weld), fully guided wedge reduces wear on seating surfaces, Optional design available with double packing, leak-off connection, live-loading and a packing blowout for easy removal of old packing.
Med Forged Steel Gate Valves are with main Features as below:
» Size Ranges: 1/2” through 2”
» Pressure Ratings: ANSI #150 to 2500
» Standards compliance: API 602, ASME B16.34, DIN3202 or equivalents
» Materials: Forged Carbon Steel, Forged Stainless Steel, Forged Duplex or Other Specials
» Ends Connections: Screwed, Welded Ends and Flanged (FF, RF, RTJ) to international standards
» OS&Y, Outside Stem and Yoke
» Metal-sealed(API Trim # 1, #5, #8, #10 and etc.)
» Optional Locking Device or Stem Extension
» Optional Bolted Bonnet, Welded Bonnet or Pressure Sealed Bonnet
» Optional Direct Mounting to ISO 5211
» Full Bore or Reduce Port
