Description

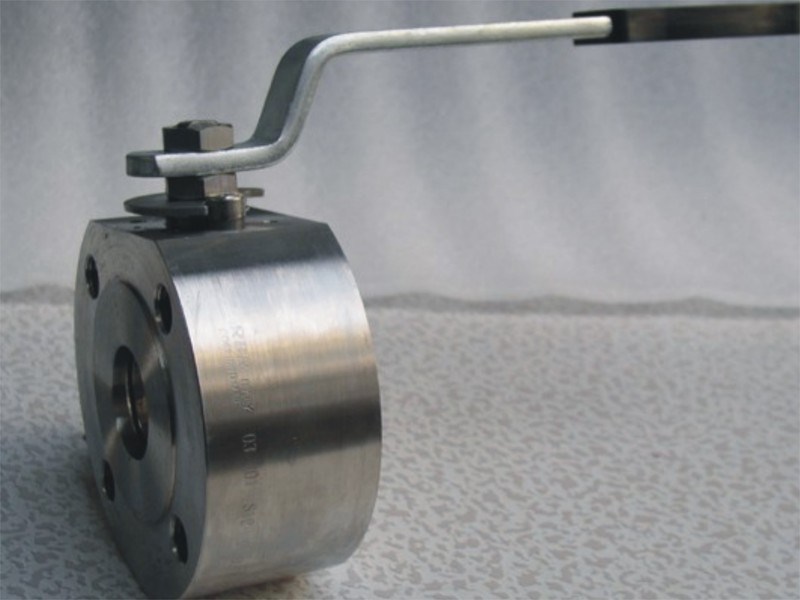

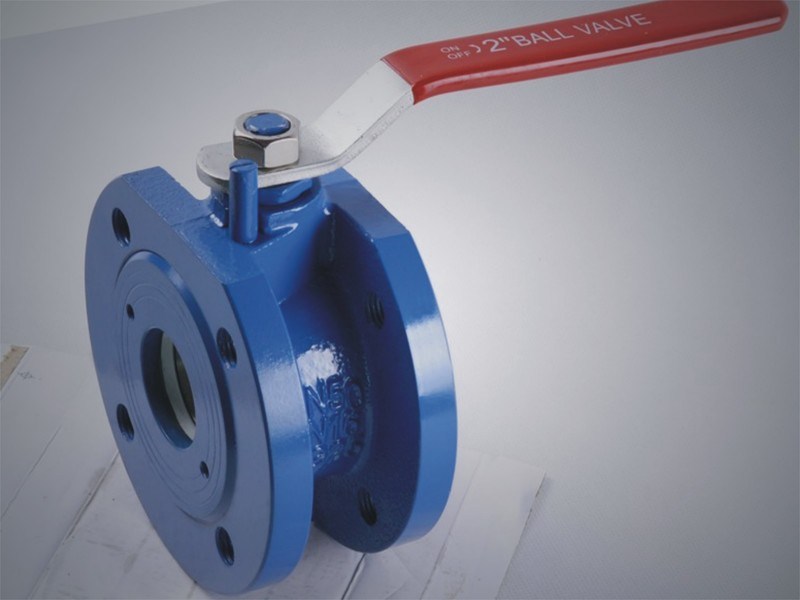

Med Wafer Ball Valves are designed for process systems where lightweight, compact envelope size and ease of installation and repair are important considerations. Available in sizes 1/2”~ 6", Wafer Ball Valves are rated at 720 cwp and mount between ANSI Class 150-pound and 300-pound flanges. Studs, suitable for the flange rating, are furnished with the valve. Designed and manufactured to the most updated international standards API 6D, ASME B16.34, BS 5351 or equivalents. With standard features of Fire Safe, Anti-staic and Blow-out
» Size Ranges: 1/2” through 6”
» Pressure Ratings: PN10, PN16, ASA 150
» Standards compliance: BS 5351, ASME B16.34, DIN 3357, ASME B16.5, ISO 5208, API 598, DIN 2504 or equivalents
» Materials: Forged Carbon Steel, Stainless Steel, Duplex or Other Specials
» Ends Connections: Wafer ends to international standards
» Optional Direct Mounting to ISO 5211
» Optional Locking Device
» Full Port
