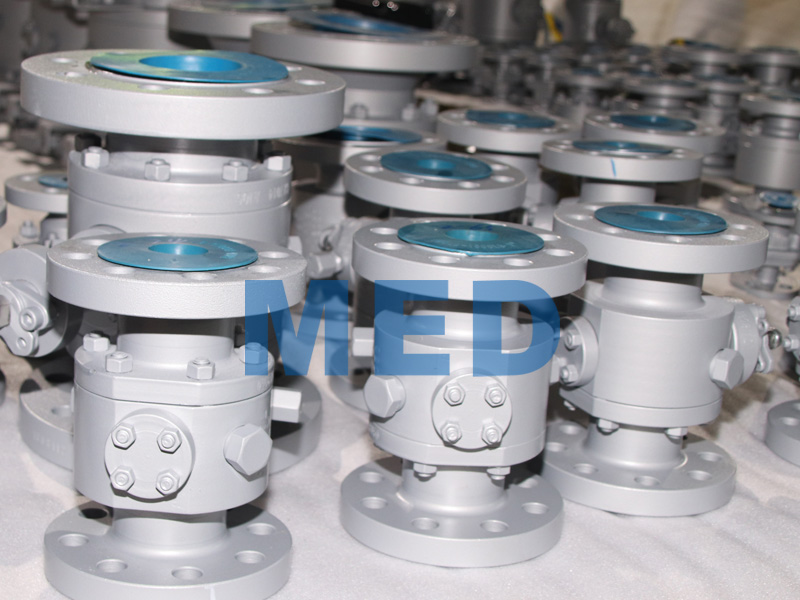

Carbon Steel Flanged Ball Valve, A105N, Class 150, 2 Inch, BS 5351

FORGED STEEL SIDE ENTRY BALL VALVE - Free Floating Ball ( 2 Piece )STANDARD MATERIALSPART NAMESMATERIALSBODYASTMA10
OnLine Service
QQ Skype Online PDF Download
Carbon Steel Flanged Ball Valve, A105N, Class 900,6 Inch, BS 5351 ASTM A105 Ball Valve,8X6 Inch, 2500#, API 6D, RTJ
Description
Quick Detail:
Type: Flanged End Ball Valve.
Material: ASTM LF6.
Valve Size: 2 Inch.
Applicable Pressure Rating: Class 150 LB.
Temperature Rating: Up to 250℃.
Molding Style: Forging.

Product Range:
Material: ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, ASTM A182 F55, Inconel Alloy, Monel Alloy, Hastelloy Alloy.
Standards: API 608, BS 5351, ASME B16.34/ B16.11/ B1.20.1/ B16.25.
Valve Size: 1/2 - 4 Inch.
Applicable Pressure Rating: Class 150 LB - 1500 LB.
Temperature Rating: Up to 250℃.
Molding Style: Forging.
Send Inquiry

FORGED STEEL SIDE ENTRY BALL VALVE - Free Floating Ball ( 2 Piece )

STANDARD MATERIALS

  PART NAMES MATERIALS
BODY ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, ASTM A182 F55, Inconel Alloy, Monel Alloy, Hastelloy Alloy.
BONNET ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, ASTM A182 F55, Inconel Alloy, Monel Alloy, Hastelloy Alloy.
SEAT R-PTFE
BALL ASTM A276 316
Stem ASTM A276 316
O-RING NBR
BACK SEAT GASKET PTFE
PACKING GRAPHITE
WRENCH CARBON STEEL
